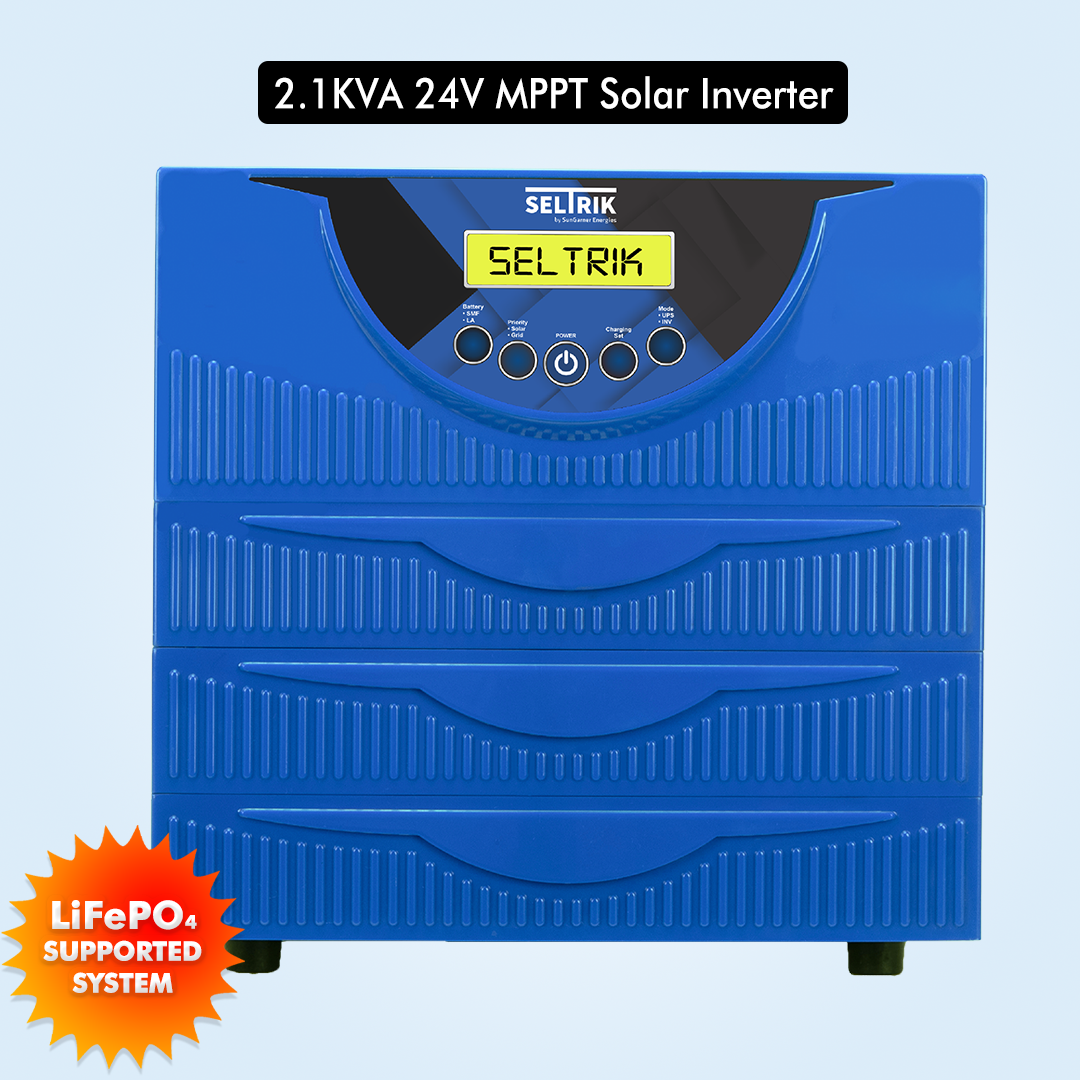

Seltrik SKL2124M 2100VA 24V MPPT Lithium-ion Supported Solar Inverter

In stock - 5 items available
SKU: SKL2124M
Rs. 14,653.00
Sale Rs. 30,999.00 Rs. 14,653.00
Color

Use this text to encourage communication or promote sharing on social networks.

You can also add links

The Seltrik Superb 2100VA 24V Lithium-ion Supported MPPT Solar Inverter is a cutting-edge solution designed to optimize the performance of your solar power system. It efficiently converts the higher DC voltage output from solar panels into the lower voltage required to charge batteries, ensuring maximum energy utilization. Engineered with high-quality materials and advanced technology, this 2100VA Solar PCU provides an uninterrupted power supply with a backup of up to 10 hours.

Brand
  • Seltrik
Model Number
  • SKL2124M 2100VA 24V MPPT Lithium-ion Supported Solar Inverter
Battery Included
  • No
Back Up Time
  • 8 hrs
Load Options
  • 50Amp
Type
  • Pure Sine Wave Inverter
Model Name
  • Seltrik 2100VA 24V MPPT Lithium-ion Solar Inverter
Mode Type
  • Solar Off grid Inverter
Material
  • metallic
Fixture Type
  • NA
Technology Used
  • MPPT technology
Solar Power Compatible
  • Yes
Switch Type
  • Relay



Output Features
Efficiency
  • 85 %
Output Voltage
  • 220V±8%
Output Frequency
  • 50Hz±1%
Overload
  • >100%,15Sec
AC Output Types
  • MPPT
Change Over Time
  • 10 ms
Change Over Voltage
  • 220V
Surge Rating
  • 2100 VA
Overload Rating
  • 20A
Other Output Features
  • NA



Input Features
Input Voltage
  • 90V
Input Frequency
  • 47Hz±3%
Low Cut Input Voltage
  • 90V±5V
Low Cut Recovery Input Voltage
  • >100V±5V
High Cut Input Voltage
  • 290V±5V
High Cut Recovery Input Voltage
  • <280V±5V
Other Input Features
  • multiple charging settings, battery equalize, DOD settable



Battery Features
Battery Type
  • Lithium-ion/LEAD ACID/SMF
Recharge Time
  • NA
Number of Batteries
  • 2
Battery Boost Voltage
  • 14.5VDC
Battery Voltage
  • 24V
Battery Capacity
  • 220Ah
Battery Charging Current
  • 15A BY GRID/20A BY SOLAR
Replacement Battery
  • No
Compatible Battery Types
  • Lithium battery
Compatible Battery Make
  • Compatible with all battery brand
Other Battery Features
  • High Efficiency



Environmental Features
Storage Temperature
  • 40C
Operating Temperature
  • 40C
Noise Level
  • <55dB,distance 1m
Total Harmonic Distortion
  • <5%
Other Environmental Features
  • environment friendly, ECO



Convenience Features
Emergency Power Off
  • Yes
Display Type
  • LCD
Display Indicator Functions
  • Input/Output Voltage, Current, Frequency, battery voltage & current, Solar Voltage & Current, charging set, ups mode or inverter mode, power On/off
Audible Indicator Functions
  • over load, grid fail ON/OFF
USB Charging Port
  • Yes
Protection Against
  • short circut, battery low, high temp., over load
Cooling System
  • Fan
Other Convenience Features
  • low maintenance



Dimensions
Width
  • 28 cm
Height
  • 26 cm
Depth
  • 27.5 cm
Weight
  • 18 kg



Additional Features
Certification
  • BIS Certified
Corrosion Resistant
  • Yes
Other Features
  • high efficiency, by pass switch, soft start technology, user friendly, over temp protection, noise free device



Warranty
Warranty Summary
  • 36 Month Warranty
Service Type
  • All Spare part
Covered in Warranty
  • any power related
Not Covered in Warranty
  • damage and repair not covered
