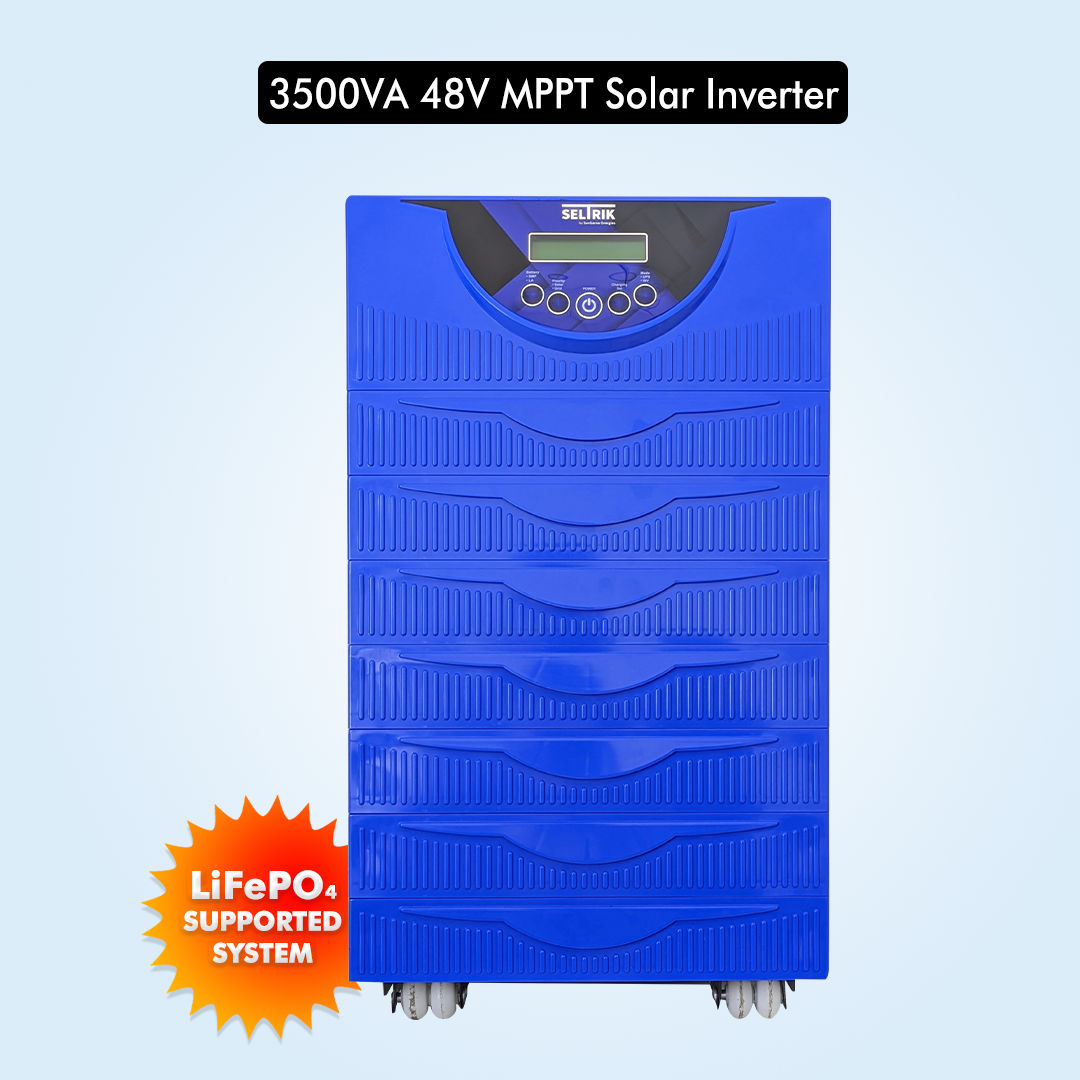

Seltrik 3500VA 48V MPPT Lithium-ion Supported Solar Inverter for your home and business

In stock - 5 items available
SKU: SKL3548M
Rs. 37,599.00
Sale Rs. 60,999.00 Rs. 37,599.00
Color

Use this text to encourage communication or promote sharing on social networks.

You can also add links

This MPPT Solar Lithium-ion supported inverter offers an advanced equalisation charging mode for Lithium-ion batteries, requiring up to 10 batteries for optimal performance. It provides flexible charging options, delivering 15A from the grid and 20A from solar sources, ensuring efficient energy management. With a backup time of up to 4.4 hours, it’s an excellent solution for powering essential appliances during power outages or off-grid conditions, making it ideal for prolonged power cuts. Practical Features Designed for maximum convenience, this 3500 VA MPPT Solar Lithium-ion supported inverter operates as an off-grid inverter and integrates 48V MPPT technology for efficient solar power utilization.

Brand
  • Seltrik
Model Number
  • 3500VA 48V MPPT Lithium-ion Supported Solar Inverter
Battery Included
  • No
Back Up Time
  • 4.4 hrs
Load Options
  • fans, AC, submersible, Refrigerator, Washing machines, Mixer grinder, LED
Type
  • Pure Sine Wave Inverter
Model Name
  • Seltrik 3500VA 48V MPPT Lithium-ion Solar Inverter
Mode Type
  • solar off grid Inverter
Material
  • metallic
Fixture Type
  • NA
Technology Used
  • MPPT technology
Solar Power Compatible
  • Yes
Switch Type
  • Relay



Output Features
Efficiency
  • 85 %
Output Voltage
  • 220V±8%
Output Frequency
  • 50Hz±1%
Overload
  • >100%,15Sec
AC Output Types
  • MPPT
Change Over Time
  • 12 ms
Change Over Voltage
  • 220V
Surge Rating
  • 3500 VA
Overload Rating
  • 11A
Other Output Features
  • NA



Input Features
Input Voltage
  • 230V
Input Frequency
  • 50Hz±3%
Low Cut Input Voltage
  • 120V±5V
Low Cut Recovery Input Voltage
  • >130V±5V
High Cut Input Voltage
  • 200V±5V
High Cut Recovery Input Voltage
  • 280V±5V
Other Input Features
  • multiple charging settings, battery equalize, DOD settable



Battery Features
Battery Type
  • Lithium-ion/LEAD ACID/SMF
Recharge Time
  • NA
Number of Batteries
  • 2
Battery Boost Voltage
  • 57VDC
Battery Voltage
  • 48
Battery Capacity
  • 220Ah
Battery Charging Current
  • 15A BY GRID/20A BY SOLAR
Replacement Battery
  • No
Replacement Battery Type
  • NA
Compatible Battery Types
  • Lithium battery
Compatible Battery Make
  • Compatible with all battery brand
Other Battery Features
  • High Efficiency



Environmental Features
Storage Temperature
  • 40C
Operating Temperature
  • 40C
Noise Level
  • <55dB,distance 1m
Total Harmonic Distortion
  • <5%
Other Environmental Features
  • environment friendly



Convenience Features
Emergency Power Off
  • Yes
Display Type
  • LCD
Display Indicator Functions
  • Input/Output Voltage, Current, Frequency, battery voltage & current, Solar Voltage & Current, charging set, ups mode or inverter mode, power On/off
Audible Indicator Functions
  • over load, grid fail ON/OFF
USB Charging Port
  • Yes
Protection Against
  • short circut, battery low, high temp., over load
Cooling System
  • Fan
Other Convenience Features
  • low maintenance



Dimensions
Width
  • 35 cm
Height
  • 48.5 cm
Depth
  • 60 cm
Weight
  • 39 kg



Additional Features
Certification
  • BIS Certified
Corrosion Resistant
  • Yes
Other Features
  • high efficiency, by pass switch, soft start technology, user friendly, over temp protection, noise free device



Warranty
Warranty Summary
  • 36 Month Warranty
Service Type
  • all spare part
Covered in Warranty
  • any power related
Not Covered in Warranty
  • broken and repair not covered
