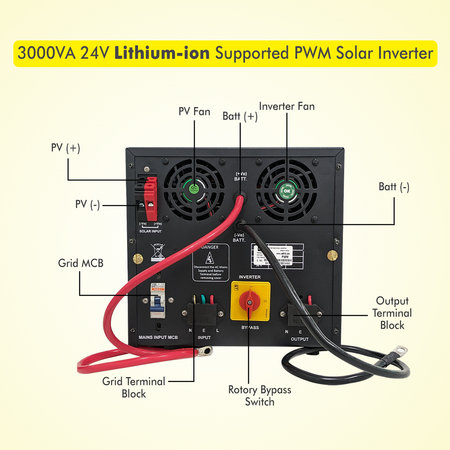

Seltrik 3000VA 24V PWM Lithium-ion Supported Solar Inverter for your Home & Business

In stock - 5 items available
SKU: SKL2524P
Regular price Rs. 22,599.00
Regular price Sale Rs. 36,999.00 Sale price Rs. 22,599.00
Color

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Here’s a refined version of your text: Seltrik Smart Technology 3000VA 24V Lithium-Ion Supported PWM Solar PCU The Seltrik Smart Technology 3000VA 24V PWM-based Solar PCU is designed to stabilize voltage and current output from solar panels, significantly enhancing efficiency. Equipped with automatic overload protection, it prevents excessive strain on the solar panel system, ensuring longevity and reliability.

Brand
  • Seltrik
Model Number
  • 3000VA 24V PWM Lithium-ion Supported Solar Inverter for your Home & Business
Battery Included
  • No
Back Up Time
  • 3 hrs
Load Options
  • 9.5 AMP
Type
  • Pure Sine Wave Inverter
Model Name
  • 3000VA 24V Lithium-ion Supported PWM Solar Inverter
Mode Type
  • UPS
Material
  • metallic
Technology Used
  • Advanced PWM Technology
Solar Power Compatible
  • Yes
Switch Type
  • relay



Output Features
Efficiency
  • >85 %
Output Voltage
  • 220V±8%
Output Frequency
  • 50Hz±1%
Overload
  • >100%,15 Sec
AC Output Types
  • PWM
Change Over Time
  • 12 ms
Surge Rating
  • 3000 VA
Overload Rating
  • 9.5A
Other Output Features
  • output Voltage 220V, isolation transformer inbuilt



Input Features
Input Voltage
  • 230V
Input Frequency
  • 50Hz±3%
Low Cut Input Voltage
  • 90V±5V
Low Cut Recovery Input Voltage
  • 100V±5V
High Cut Input Voltage
  • 290V±5V
High Cut Recovery Input Voltage
  • 280V±5V
Other Input Features
  • low maintenance



Battery Features
Battery Type
  • Lithium-ion
Recharge Time
  • NA
Number of Batteries
  • 1
Battery Boost Voltage
  • 14.5VDC
Battery Voltage
  • 12
Battery Capacity
  • 220Ah
Battery Charging Current
  • 15A BY GRID/20A BY SOLAR
Replacement Battery
  • No
Replacement Battery Type
  • NA
Compatible Battery Types
  • Lithiim-ion battery
Compatible Battery Make
  • all brand
Other Battery Features
  • low maintenace, high efficient



Environmental Features
Storage Temperature
  • 40C
Operating Temperature
  • 40C
Noise Level
  • <55dB,distance 1m
Total Harmonic Distortion
  • <5%
Other Environmental Features
  • environment friendly



Convenience Features
Emergency Power Off
  • Yes
Display Type
  • LCD
Display Indicator Functions
  • Input/Output Voltage, Battery Voltage & Current, Solar Voltage & Current, charging set, ups mode or inverter mode, Power On/OFF, screen hold
Audible Indicator Functions
  • Over Load
USB Charging Port
  • Yes
Protection Against
  • short circuit, overload
Cooling System
  • fan
Other Convenience Features
  • low maintenance, high efficient



Dimensions
Width
  • 33.5 cm
Height
  • 23 cm
Depth
  • 34.5 cm
Weight
  • 22 kg



Additional Features
Certification
  • BIS Certified
Corrosion Resistant
  • Yes
Other Features
  • high efficiency, by pass switch, soft start technology, user friendly, over temp protection, noise free device



Warranty
Warranty Summary
  • 36 Month Warranty
Service Type
  • all spare part
Covered in Warranty
  • any power related
Not Covered in Warranty
  • broken and repair not covered
