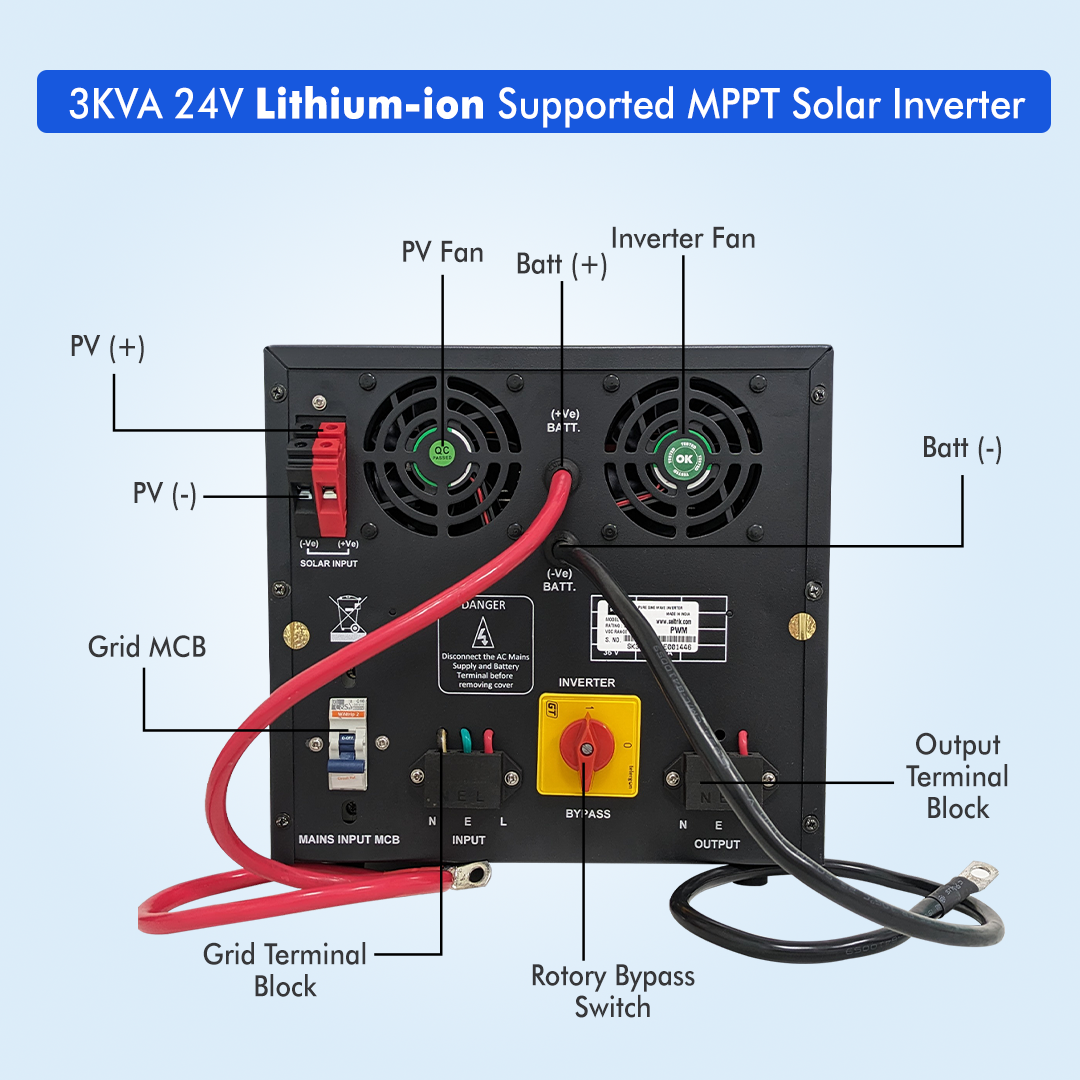

Seltrik 3000VA 24V MPPT Lithium-ion Supported Solar Inverter for your home and business

In stock - 5 items available
SKU: SKL3024M
Rs. 25,999.00
Sale Rs. 40,999.00 Rs. 25,999.00
Color

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Convenient Charging Designed with an equalization charging mode for Lithium-ion batteries, this MPPT Solar Lithium-ion Inverter effectively prevents acid stratification and sulfation, ensuring long-term performance and reliability. With a robust 220 Ah battery capacity, it supports efficient, extended battery life. Additionally, it offers versatile charging options, including grid charging of up to 15A and solar charging of up to 20A, enabling optimal power management.

Brand
  • Seltrik
Model Number
  • 3000VA 24V MPPT Lithium-ion Supported Solar Inverter
Battery Included
  • No
Back Up Time
  • 8 hrs
Load Options
  • 800WP Bulb Load
Type
  • Pure Sine Wave Inverter
Model Name
  • Seltrik 3000VA 24V MPPT Lithium-ion Solar Inverter
Mode Type
  • solar off grid Inverter
Material
  • metallic
Fixture Type
  • NA
Technology Used
  • MPPT technology
Solar Power Compatible
  • Yes
Switch Type
  • Relay



Output Features
Efficiency
  • 85 %
Output Voltage
  • 220V±8%
Output Frequency
  • 50Hz±1%
Overload
  • >100%,15Sec
AC Output Types
  • MPPT
Change Over Time
  • 10 ms
Change Over Voltage
  • 220V
Surge Rating
  • 3000 VA
Overload Rating
  • 9.5A
Other Output Features
  • NA



Input Features
Input Voltage
  • 230V
Input Frequency
  • 50Hz±3%
Low Cut Input Voltage
  • 90V±5V
Low Cut Recovery Input Voltage
  • >100V±5V
High Cut Input Voltage
  • 290V±5V
High Cut Recovery Input Voltage
  • 280V±5V
Other Input Features
  • multiple charging settings



Battery Features
Battery Type
  • Lithium-ion/LEAD ACID/SMF
Recharge Time
  • NA
Number of Batteries
  • 2
Battery Boost Voltage
  • 14.5VDC
Battery Voltage
  • 24V
Battery Capacity
  • 220Ah
Battery Charging Current
  • 15A BY GRID/20A BY SOLAR
Replacement Battery
  • No
Replacement Battery Type
  • NA
Compatible Battery Types
  • Lithium battery
Compatible Battery Make
  • Compatible with all battery brand
Other Battery Features
  • High Efficiency



Environmental Features
Storage Temperature
  • 40C
Operating Temperature
  • 40C
Noise Level
  • <55dB,distance 1m
Total Harmonic Distortion
  • <5%
Other Environmental Features
  • environment friendly



Convenience Features
Emergency Power Off
  • Yes
Display Type
  • LCD
Display Indicator Functions
  • Input/Output Voltage, Current, Frequency, battery voltage & current, Solar Voltage & Current, charging set, ups mode or inverter mode, power on/off
Audible Indicator Functions
  • over load, grid fail ON/OFF
USB Charging Port
  • Yes
Protection Against
  • short circut, battery low, high temp., over load
Cooling System
  • Fan
Other Convenience Features
  • low maintenance



Dimensions
Width
  • 34.5 cm
Height
  • 23 cm
Depth
  • 33.5 cm
Weight
  • 24 kg



Additional Features
Certification
  • BIS Certified
Corrosion Resistant
  • Yes
Other Features
  • high efficiency, by pass switch, soft start technology, user friendly, over temp protection, noise free device



Warranty
Warranty Summary
  • 36 Month Warranty
Service Type
  • all spare part
Covered in Warranty
  • any power related
Not Covered in Warranty
  • broken and repair not covered
